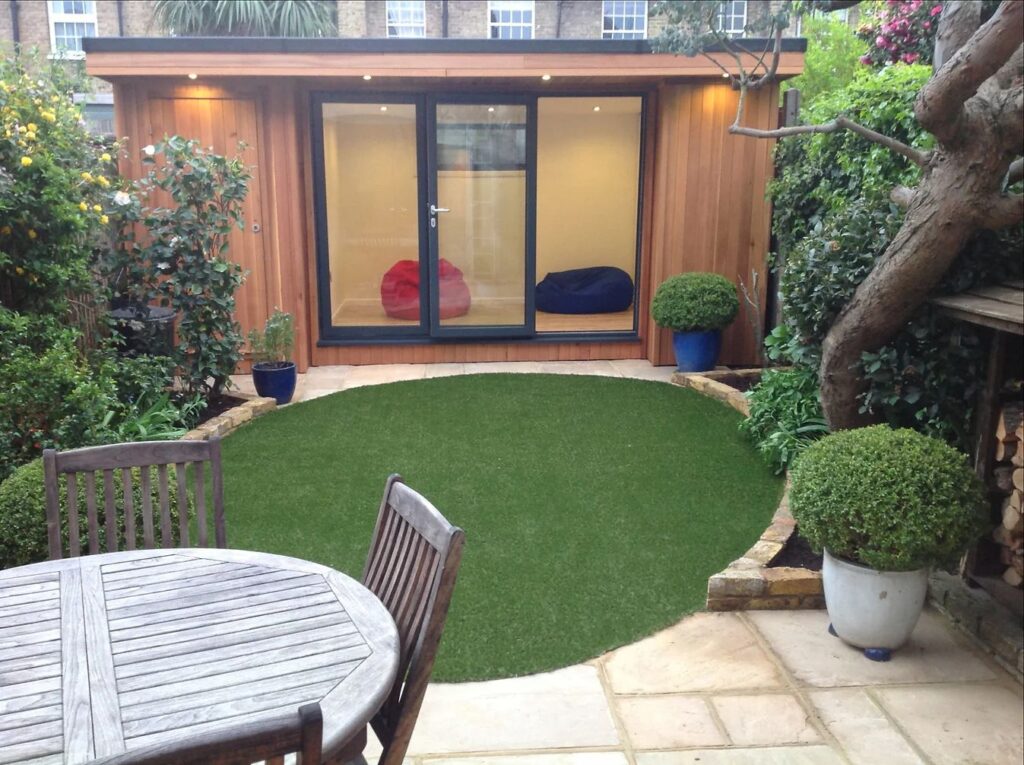

The Crusoe Pad

£17,450 including VAT



The Crusoe Pad is a 2.8 metre by 3.5 metre handcrafted cedar clad timber framed building and can be designed and built to your requirements.

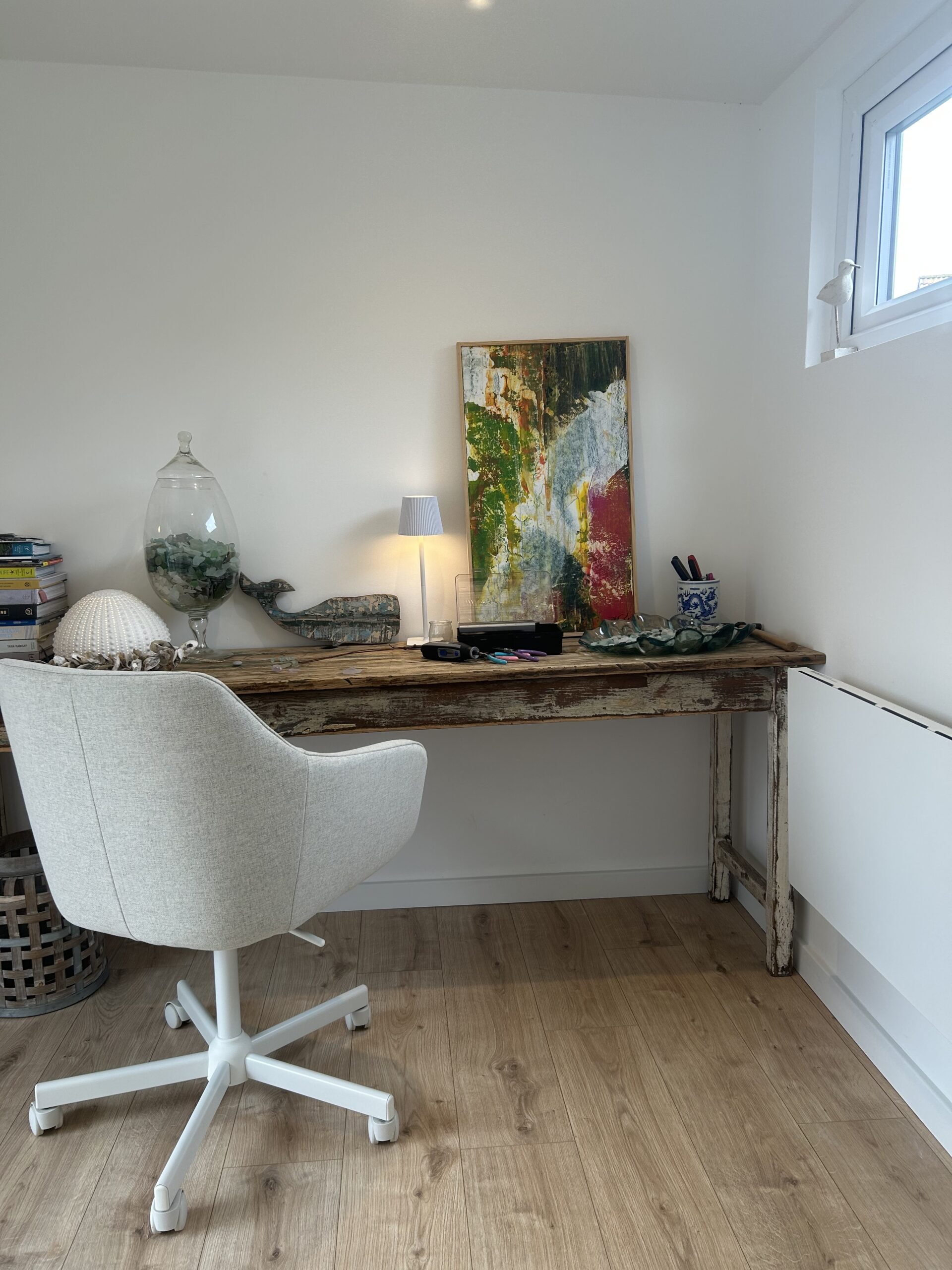

Fully insulated and internally boarded and plastered, the garden room makes for an ideal extension to your home.



Cool in the summer and warm in the winter it can be used all year round whether it be a home office, music or art studio, kids playroom or gym.



Constructed from 100mm x 50mm section planed timber, clad on the outside with top quality Western Red Cedar board and erected, insulated, boarded, plastered and painted on site. The floor and roof sections are fully insulated and clad with 18mm exterior ply.

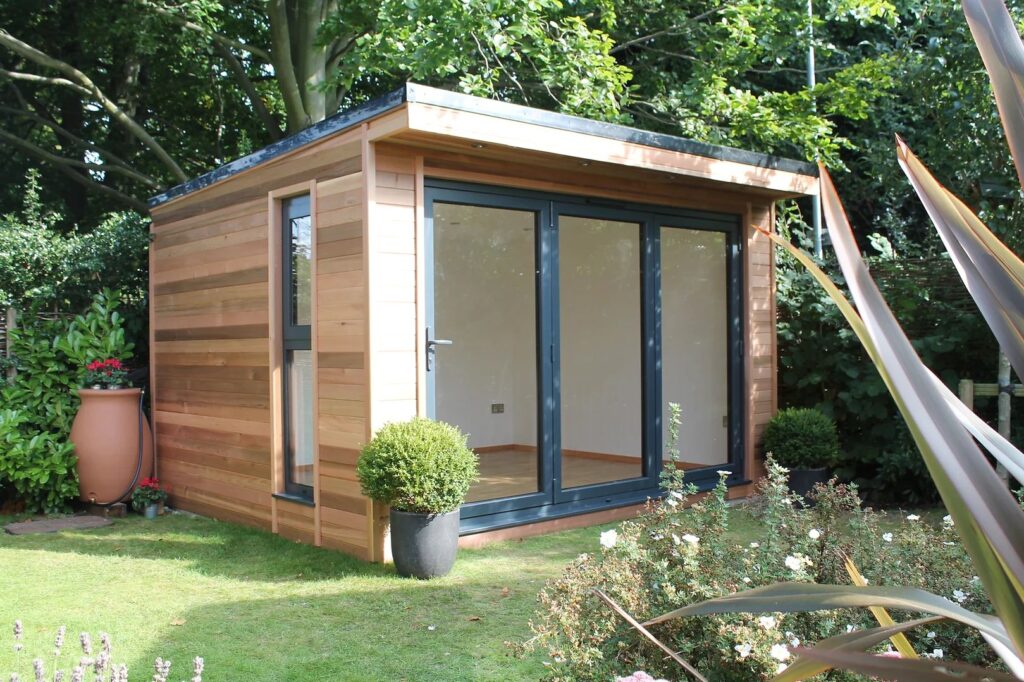

The roof is then covered with a one piece rubber roof covering (EPDM) and black UPVC profiled fascia board fitted.   Complete with a set of aluminium anthracite grey or black three leaf bifold doors and an opening side window all fitted with toughened glass sealed units.

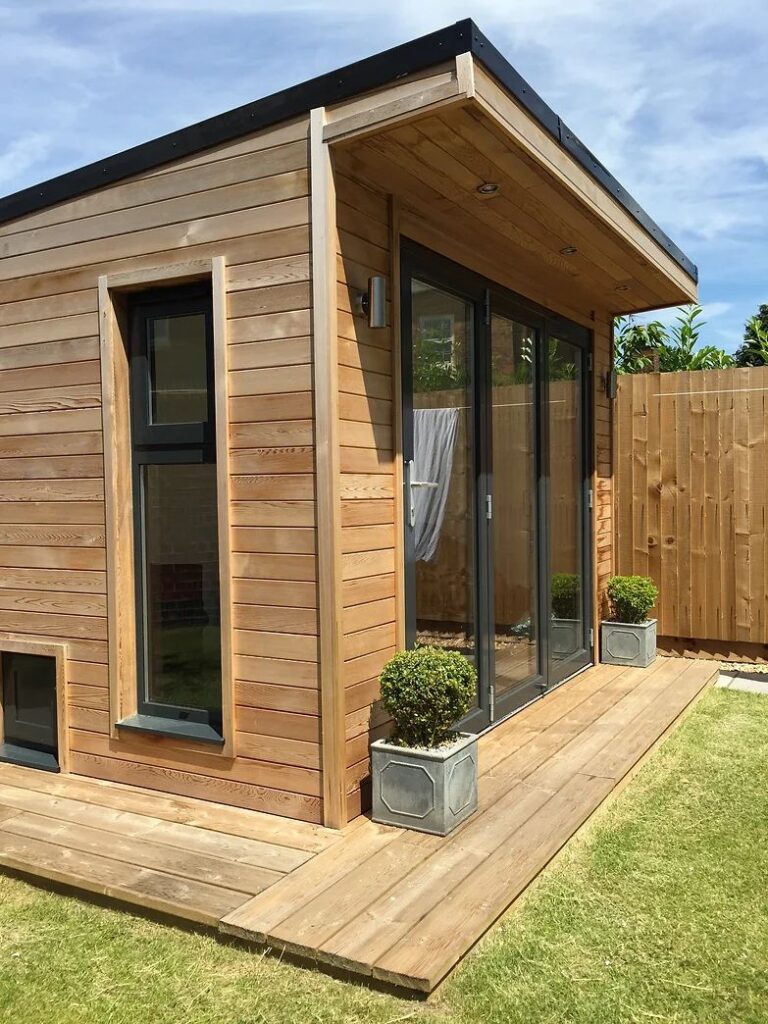

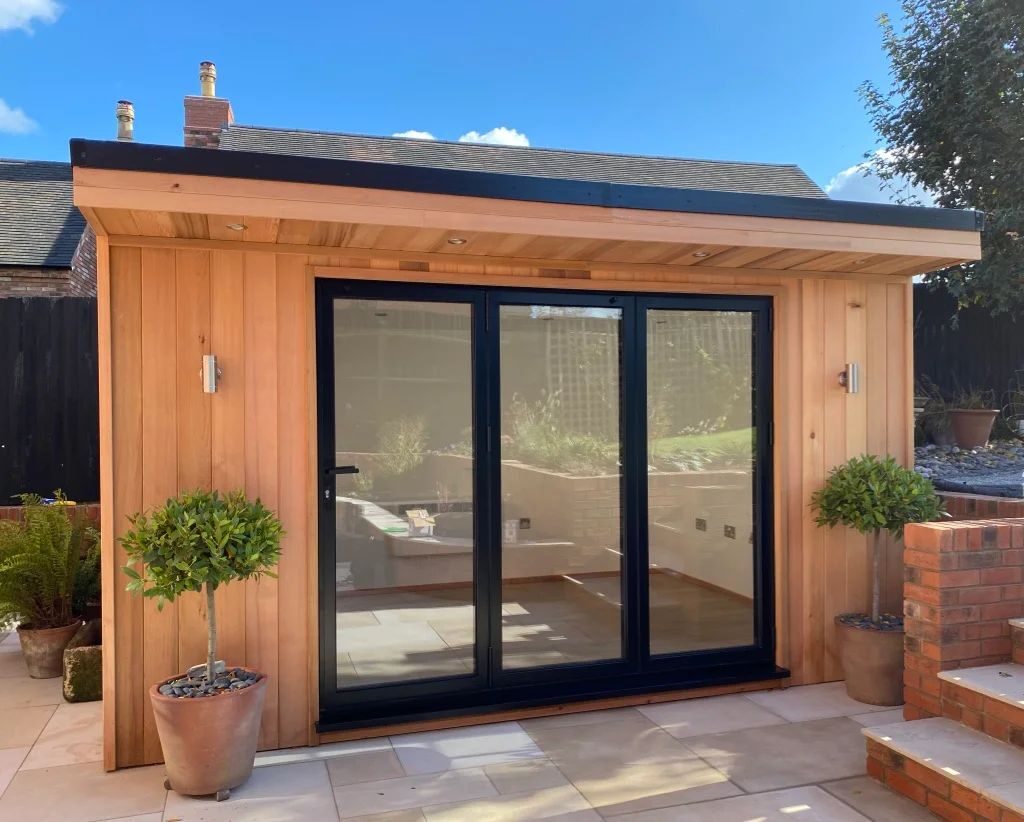

Our rooms can be clad either vertically or horizontally.



The perfect garden room, home office, studio or games room to complement your house and garden.   A family run business based in Nottingham, we can supply, deliver and erect throughout the UK.

Specification

The price (£17,450 including VAT) includes delivery, installation and all the specifications listed below;



  • 3.5 metres wide by 2.8 metres deep.

  • Timber floor: Consists of 18mm OSB ply board on 75 x 50mm pressure treated floor joists and incorporating 75mm rigid insulation to be seated on concrete pads/slabs or solid concrete slab if required (you can either get a local builder to quote for and build the base or we can do it for you, to be quoted for at the time of site visit) Internal floor: 18mm exterior ply.

  • Overall dimensions: 2.8 metres deep plus 50cm front overhang x 3.5 metres wide.

  • External height at front elevation: 2.5m.

  • Internal height at front elevation: 2.15m.

  • Wall construction: 100mm x 50mm section timber with breathable membrane and clad with 90mm x 18mm Western Red Cedar tongue and groove board.

  • Wall and ceiling insulation: 100mm cavity wall insulation.

  • Roof: one piece EPDM single membrane rubber roof covering (50 year life span) on 18mm exterior OSB plyboard on 150mm x 50mm roof timbers incorporating insulation, plasterboard, internally skimmed and painted in white emulsion throughout.

  • Black UPVC profiled fascia board.

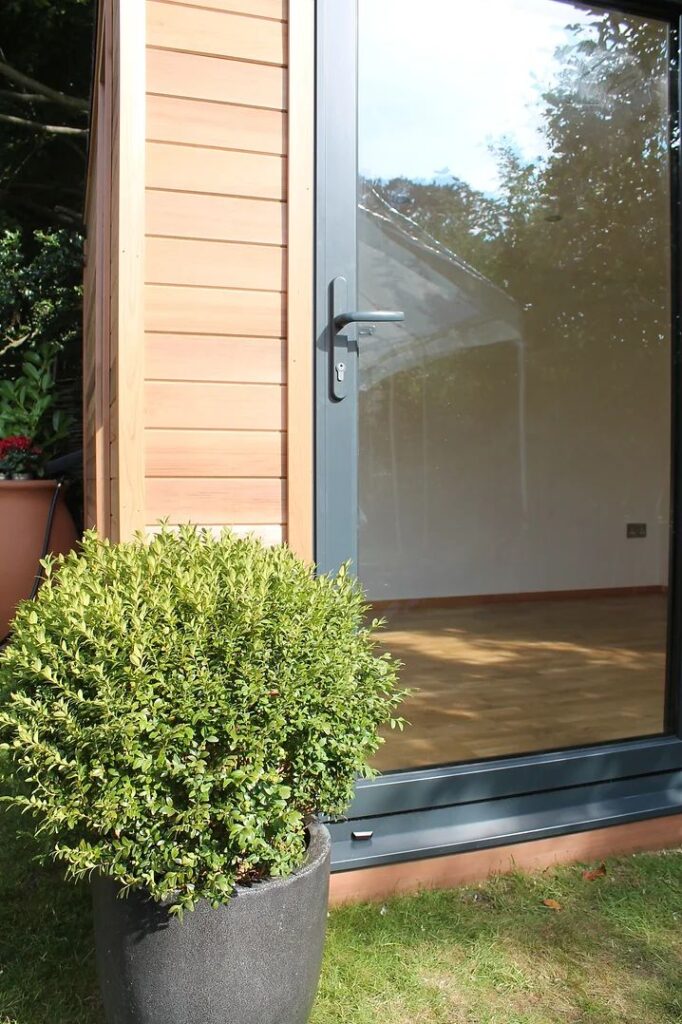

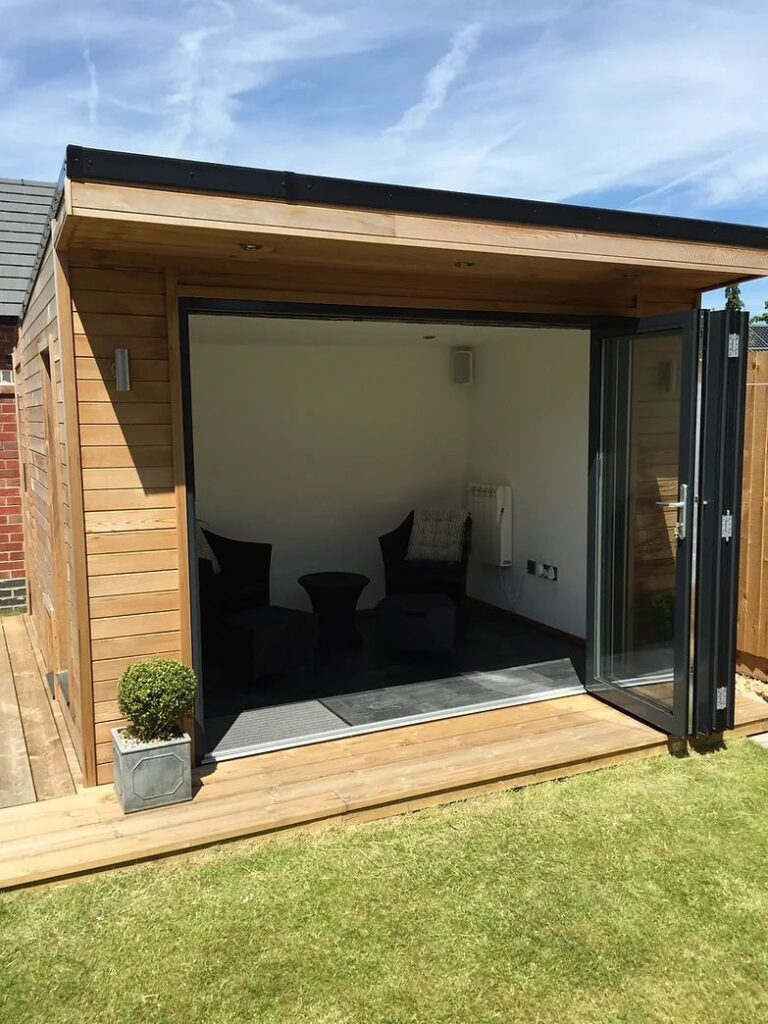

  • Doors: Three leaf anthracite grey or black aluminium bifold doors fitted with toughened glass sealed units with multiple locking system, 2.4m wide x 2m high.

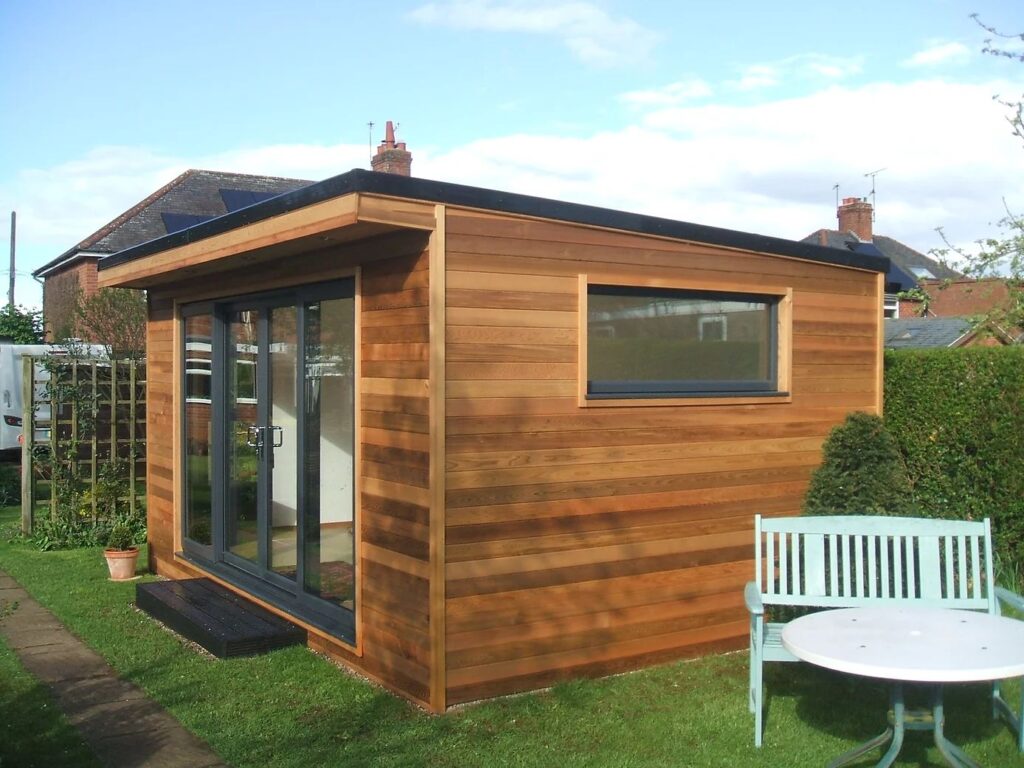

  • Window:  1 side window top hung and opening anthracite grey or black framed aluminium with toughened glass sealed unit 190cm x 50cm.

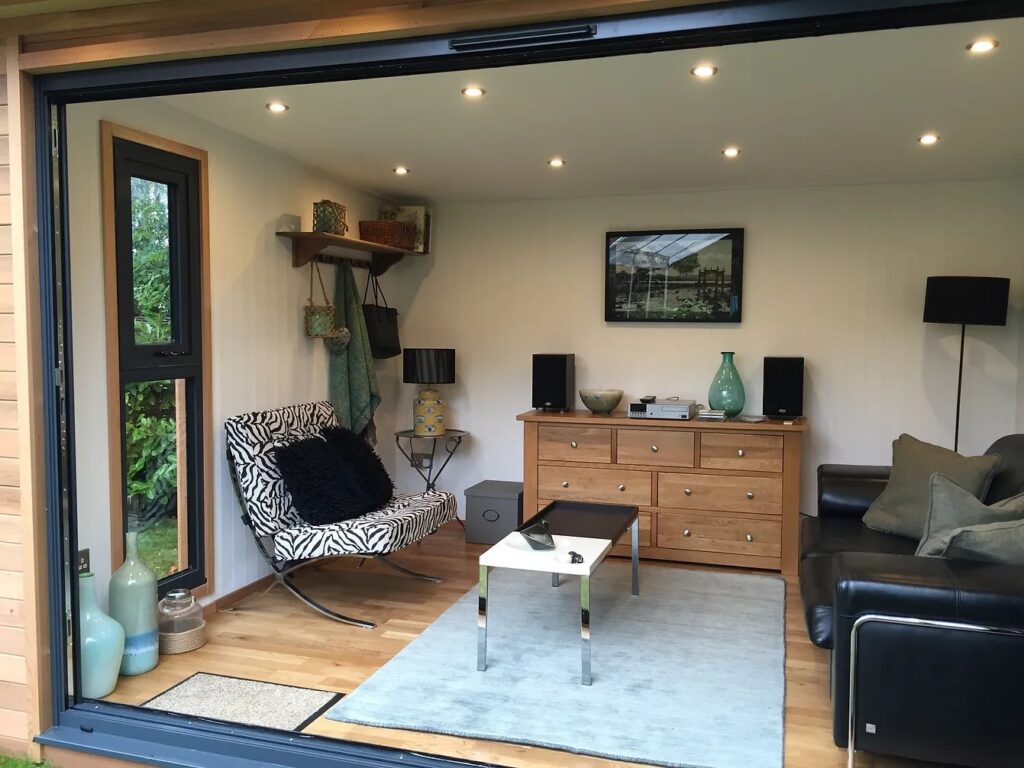

  • Internal finish:  Ceilings and walls: 12mm plasterboarded and plaster skimmed, painted in white emulsion throughout.  Skirting board and architrave fitted.

  • A choice of laminate flooring throughout.

  • Electrics: 4 double sockets, 6 chrome sunken down lights and 4 external down lights.  Dedicated consumer unit.

  • Standard electrical connection to your existing supply by our fully qualified and registered electrician included.

  • We now include a hard wired smoke alarm with battery backup and a 1000 KW wall mounted heater as standard at no extra cost.
