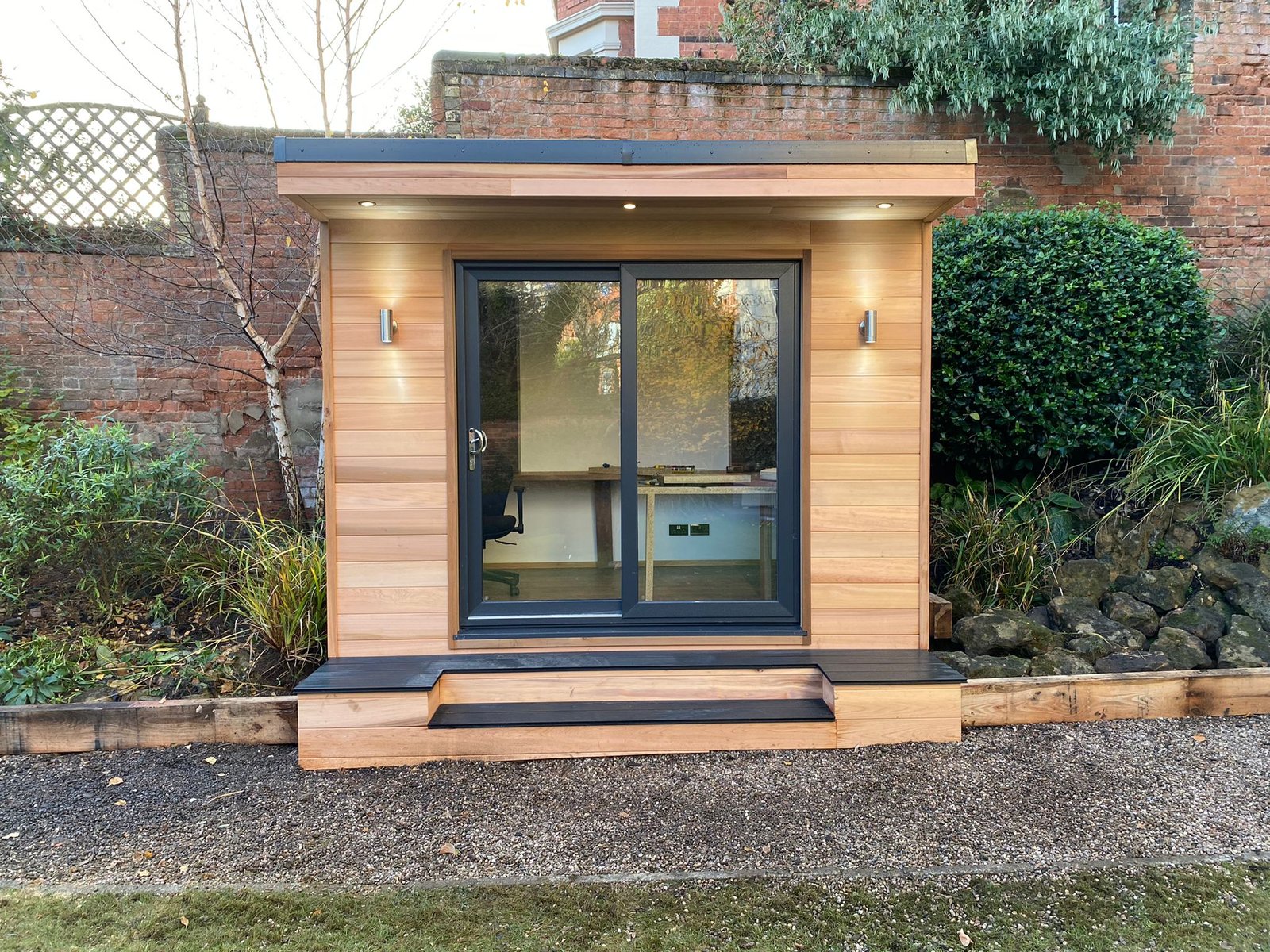

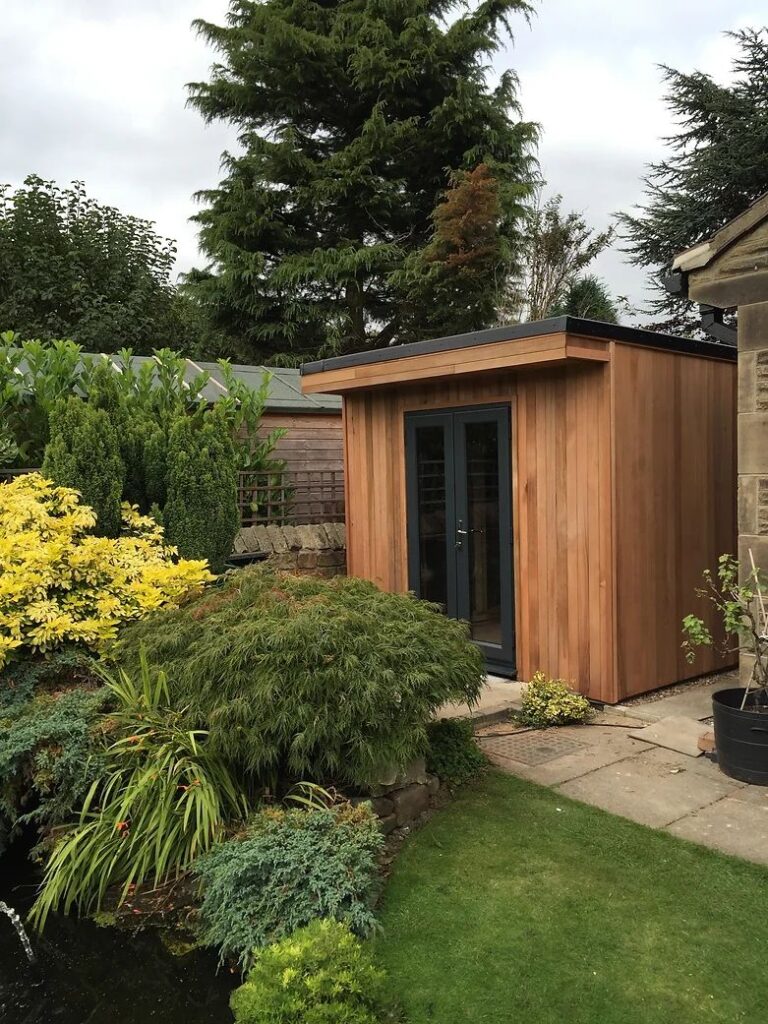

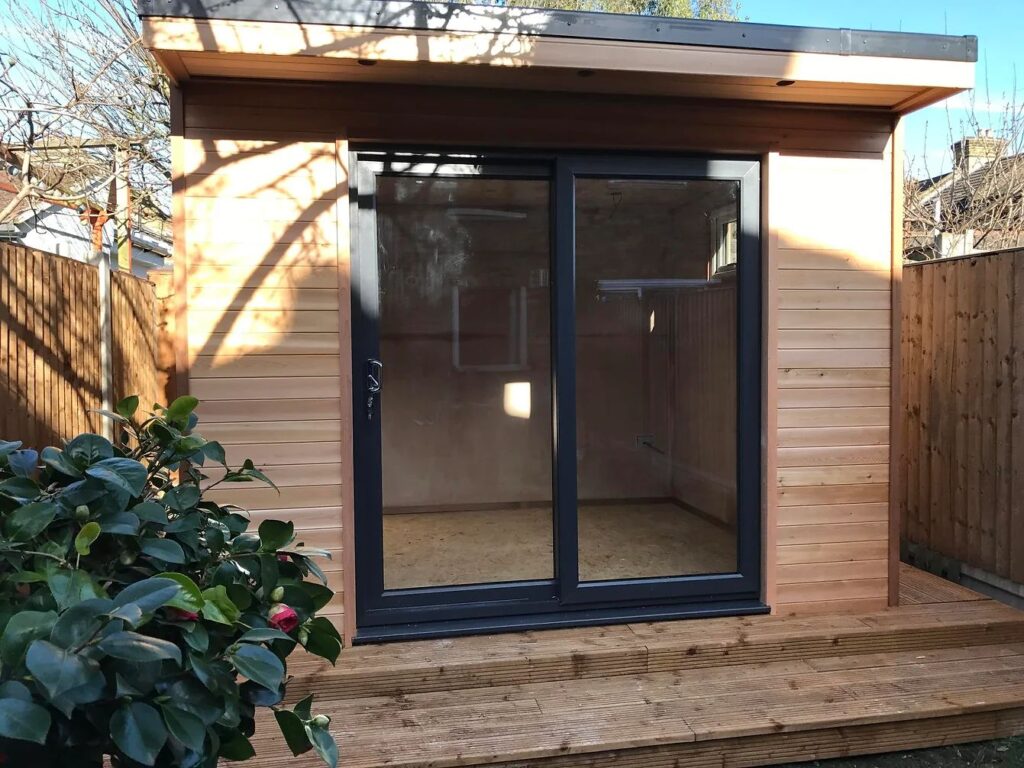

The Crusoe Compact



£12,950 including VAT



The Crusoe Compact is a 3 metre by 2.4 metre handcrafted cedar clad timber framed building and can be designed and built to YOUR requirements.



Fully insulated and internally boarded and plastered, the Crusoe Compact makes for an ideal extension to your home.  Cool in the summer and warm in the winter it can be used all year round whether it be a home office, music or art studio, kids playroom or gym.



Constructed from 100mm x 50mm section planed timber, clad on the outside with top quality Western Red Cedar board and erected, insulated, boarded and plastered on site. The floor and roof sections are fully insulated and clad with 18mm exterior ply.



The roof is then covered with a one piece rubber membrane (EPDM) and black UPVC profiled fascia board fitted. Complete with sliding UPVC doors fitted with Pilkington K double glazed sealed units with multi locking system.

Our rooms can be clad either vertically or horizontally, your choice!



We can design and build to most shapes and sizes.  The perfect garden room, home office, studio or games room to complement your house and garden.



Specification

The price (£12,950 including VAT) includes delivery, installation and all the specifications listed below;



  • 3 metres wide by 2.4 metres deep.

  • Timber floor: Consists of 18mm OSB ply board on 75 x 50mm pressure treated floor joists and incorporating 75mm rigid insulation to be seated on concrete pads/slabs or solid concrete slab if required (you can either get a local builder to quote for and build the base or we can do it for you, to be quoted for at the time of site visit) Internal floor: 18mm exterior ply.

  • Overall dimensions: 2.4 metres deep plus 50cm front overhang x 3 metres wide.

  • External height at front elevation: 2.5m.

  • Internal height at front elevation: 2.15m.

  • Wall construction: 100mm x 50mm section timber with breathable membrane and clad with 80mm x 18mm Cedar tongue and groove board.

  • Wall and ceiling insulation: 100mm cavity wall insulation.

  • Roof: One piece rubber membrane roof covering on 18mm exterior plyboard on 150mm by 50mm roof timbers incorporating 150mm between rafters. Internally plaster boarded and plaster skimmed. Left ready to paint.

  • Black UPVC profiled fascia board.

  • Doors: Sliding UPVC. 1.8m wide x 2.0m high. Pilkington K toughened glass with multiple locking system.

  • Internal finish:  Ceilings and walls: 12mm plasterboarded and plaster skimmed.  Left ready to paint.  Skirting board and architrave fitted.

  • A choice of laminate flooring throughout.

  • Electrics: 2 double sockets, 4 chrome sunken downlights. Dedicated consumer unit.

  • Standard electrical connection to your existing supply by our fully qualified and registered electrician included.

  • We now include a hard wired smoke alarm with battery backup and a 1000 KW wall mounted heater as standard at no extra cost.
